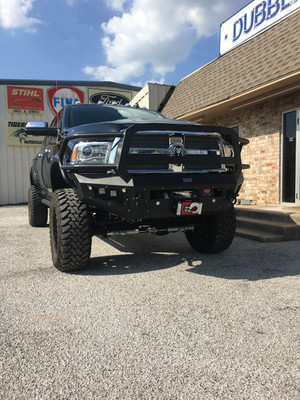

Heavy-duty, smooth 3/16" plate bumper with winch mount & light bar cutout. Modular center skid plate & light bracket options. Multiple grill guard bar options.
- 3/16" plate-style shell
- 1/4" frame mounts
- 3/4" thick shackle mounts
- Accommodates one Rigid 30" E-series light bar ** (see fitment notes below)
- Bolt-on center skid accommodates these Warn winches ** (see fitment notes below)
- Bolt-in fog buckets for Rigid surface mount cube lights
- Bolt-on license plate bracket
- Bodyguard logo cutout
- Stainless button-head bolts
- Average weight 345-365 lbs
Notes:
- WINCH & LIGHT BAR FITMENT NOTES: If mounting both item inside the bumper, it will require using a smaller frame winch with a foot-down mount (such as Warn Zeon 12 winch). If using a larger frame winch with a foot-forward mount (such as Warn 16.5ti or Warn M-Series) you can NOT mount a light bar with it, due to the winch mounting bracket inside the bumper blocking the light bar cutout.
- FRONT SONAR SENSOR COMPATIBILITY NOTES: Trucks with the "technology package" which offer adaptive cruise control, (Example: 2017-20 Ford SD; 2017-20 F150; 2017-20 Raptor)-- These have been tested and as far as we can tell the sonar sensor appears to be compatible with our bumper, even reading through the expanded metal insert. Sometimes it does take some recalibration to reset the module, and sometimes a dealership will need to flash the computer to for everything to properly reset and work.
- LIGHT COMPATIBILITY NOTES: All products are designed to fit Rigid LED off-road lights. We cannot guarantee fitment with other brands, however most lights available on the market have similar dimensions and our bumpers and brackets are designed to be adjustable. Laws vary by state so check your local laws regarding off-road light usage on highways.
- FACTORY CAMERA RELOCATION: If ordering a full replacement grill guard bumper for any of the following vehicles, the bumper will accommodate relocation of the factory front camera into the bumper using our ClearView patent pending technology. Please be sure to purchase the optional front camera harness if relocating your front camera: 2017+ Ford F250/350/450/550; 2020+ Chevy 2500/3500 HD; 2019+ Ram 2500/3500/4500 HD; 2020+ GMC 2500/3500 HD
- Ram Sport Model trucks with parking sensors will require the purchase of factory/OEM park sensor bezels: part # 5LS52TZZAA
- This product is NOT compatible with Dodge Ram Warlock edition trucks.
- All lighting, winches, and other accessories pictured are sold separately.
- PARKING SENSOR FUNCTIONALITY MAY BE LIMITED ON TRUCKS WITH LESS THAN SIX INCHES OF LIFT.
- This product is engineered, assembled, and welded at our manufacturing facility in Texas.
- Ships 18-wheeler truck freight on oversized pallet to destinations in US and Canada.
