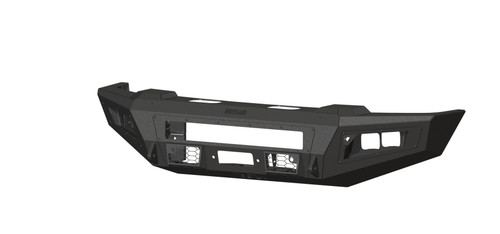

Heavy-duty, smooth 3/16" plate bumper with winch mount and light bar cutout.
Modular center skid plate and light bracket options. Multiple grill guard bar options.
-
3/16" plate-style shell
-
1/4" frame mounts
-
3/4" thick shackle mounts
-
Rectangle cutout inside the bumper fits a Rigid 30" E-Series light bar* (see fitment notes below)
-
Rectangle cutout inside the push bar fits a Rigid 20" SR-Series light bar
-
Push bar accommodates relocation of front grill camera (if applicable)**
-
Bolt-on center skid accommodates Warn winches** (see fitment notes below)
-
Bolt-on brackets for Rigid surface mount cube lights
-
Bolt-on license plate bracket
-
Bodyguard logo cutout
-
Stainless button-head bolts
-
Average weight: 285–310 lbs
Winch & Light Bar Fitment Notes:
This bumper is designed to mount a light bar or winch, not both.
If mounting both inside the bumper, a smaller frame winch with a foot-down mount (such as the Warn Zeon 12 winch) must be used.
If using a larger frame winch with a foot-forward mount (such as the Warn 16.5ti or Warn M-Series), a light bar cannot be mounted due to bracket interference.
Front Sonar Sensor Compatibility Notes:
These bumpers have been tested and appear compatible with factory sonar sensors, even through the expanded metal insert.
In some cases, recalibration or a computer flash at a dealership may be required for proper sensor function.
